[Amazon EKS STUDY] #1주차 (실습) EKS 원클릭 배포 가이드

참고: https://base-on.tistory.com/category/%ED%81%B4%EB%9D%BC%EC%9A%B0%EB%93%9C/AWS#google_vignette



가시다 님의 스터디에 참여한 수강생의 블로그를 참조하며, Amazon EKS STUDY 를 진행하고자 한다.



1. 실습 환경 아키텍처

bastion-ec2를 활용하여 Worke

• VPC 1 ea, Subnet (Public 3ea, Private 3ea)
• EKS 클러스터(Control Plane)
• 관리형 노드 그룹(EC2 3대)
• Add-on



2. CloudFormation을 활용한 실습 환경 배포

2.0 사전 수행 작업

• 관리자 권한을 가진 IAM User
• 관리자 권한을 가진 IAM Role
• IAM User의 AccessKey 및 SecretKey

용도
IAM User - Root 계정은 보안적으로 사용 지양하므로 IAM User를 사용
IAM Role - CloudFormation이 리소스 생성을 위해 사용하는 Role
AccessKey 및 SecretKey - 관리자 수준의 권한을 가진 IAM User의 액세스 키ID 입력
KeyPair - 작업용 bastion ec2에 SSH 접속을 위한 SSH 키페어 선택



위의 준비물은 미리 생성해둬야 한다.

CloudFormation 스택 배포 시 위의 정보를 사용해야하기 때문이다.

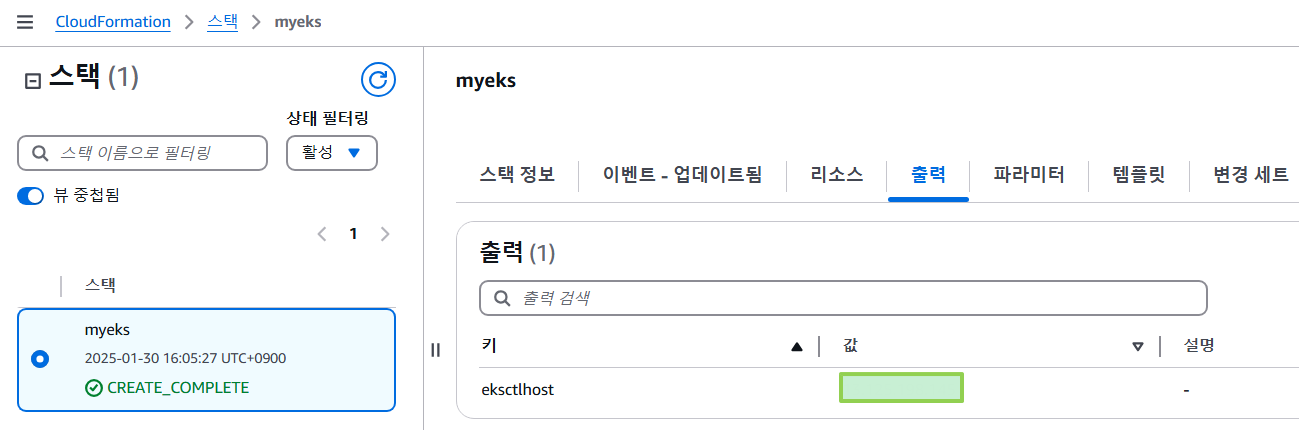

2.1 스택 생성

브라우저를 통해 아래의 링크를 접속하면 CloudFormation 스택 YAML을 다운받을 수 있다.

https://ap-northeast-2.console.aws.amazon.com/cloudformation/home?region=ap-northeast-2#/stacks/create?stackName=myeks&templateURL=https:%2F%2Fs3.ap-northeast-2.amazonaws.com%2Fcloudformation.cloudneta.net%2FK8S%2Feks-oneclick.yaml





CloudFormation yaml 내용

앞서 다운받은 CloudFormation 스택 YAML의 내용이다.

AWSTemplateFormatVersion: '2010-09-09'

Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "<<<<< Deploy EC2 >>>>>"
        Parameters:
          - KeyName
          - MyIamUserAccessKeyID
          - MyIamUserSecretAccessKey
          - SgIngressSshCidr
          - MyInstanceType
          - LatestAmiId

      - Label:
          default: "<<<<< EKS Config >>>>>"
        Parameters:
          - ClusterBaseName
          - KubernetesVersion
          - WorkerNodeInstanceType
          - WorkerNodeCount
          - WorkerNodeVolumesize

      - Label:
          default: "<<<<< Region AZ >>>>>"
        Parameters:
          - TargetRegion
          - AvailabilityZone1
          - AvailabilityZone2
          - AvailabilityZone3

      - Label:
          default: "<<<<< VPC Subnet >>>>>"
        Parameters:
          - VpcBlock
          - PublicSubnet1Block
          - PublicSubnet2Block
          - PublicSubnet3Block
          - PrivateSubnet1Block
          - PrivateSubnet2Block
          - PrivateSubnet3Block

Parameters:
  KeyName:
    Description: Name of an existing EC2 KeyPair to enable SSH access to the instances. Linked to AWS Parameter
    Type: AWS::EC2::KeyPair::KeyName
    ConstraintDescription: must be the name of an existing EC2 KeyPair.
  MyIamUserAccessKeyID:
    Description: IAM User - AWS Access Key ID (won't be echoed)
    Type: String
    NoEcho: true
  MyIamUserSecretAccessKey:
    Description: IAM User - AWS Secret Access Key (won't be echoed)
    Type: String
    NoEcho: true
  SgIngressSshCidr:
    Description: The IP address range that can be used to communicate to the EC2 instances
    Type: String
    MinLength: '9'
    MaxLength: '18'
    Default: 0.0.0.0/0
    AllowedPattern: (\d{1,3})\.(\d{1,3})\.(\d{1,3})\.(\d{1,3})/(\d{1,2})
    ConstraintDescription: must be a valid IP CIDR range of the form x.x.x.x/x.
  MyInstanceType:
    Description: Enter t2.micro, t2.small, t2.medium, t3.micro, t3.small, t3.medium. Default is t2.micro.
    Type: String
    Default: t3.medium
    AllowedValues:
      - t2.micro
      - t2.small
      - t2.medium
      - t3.micro
      - t3.small
      - t3.medium
  LatestAmiId:
    Description: (DO NOT CHANGE)
    Type: 'AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>'
    Default: '/aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-gp2'
    AllowedValues:
      - /aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-gp2

  ClusterBaseName:
    Type: String
    Default: myeks
    AllowedPattern: "[a-zA-Z][-a-zA-Z0-9]*"
    Description: must be a valid Allowed Pattern '[a-zA-Z][-a-zA-Z0-9]*'
    ConstraintDescription: ClusterBaseName - must be a valid Allowed Pattern
  KubernetesVersion:
    Description: Enter Kubernetes Version, 1.23 ~ 1.26
    Type: String
    Default: 1.28
  WorkerNodeInstanceType:
    Description: Enter EC2 Instance Type. Default is t3.medium.
    Type: String
    Default: t3.medium
  WorkerNodeCount:
    Description: Worker Node Counts
    Type: String
    Default: 3
  WorkerNodeVolumesize:
    Description: Worker Node Volumes size
    Type: String
    Default: 30

  TargetRegion:
    Type: String
    Default: ap-northeast-2
  AvailabilityZone1:
    Type: String
    Default: ap-northeast-2a
  AvailabilityZone2:
    Type: String
    Default: ap-northeast-2b
  AvailabilityZone3:
    Type: String
    Default: ap-northeast-2c

  VpcBlock:
    Type: String
    Default: 192.168.0.0/16
  PublicSubnet1Block:
    Type: String
    Default: 192.168.1.0/24
  PublicSubnet2Block:
    Type: String
    Default: 192.168.2.0/24
  PublicSubnet3Block:
    Type: String
    Default: 192.168.3.0/24
  PrivateSubnet1Block:
    Type: String
    Default: 192.168.11.0/24
  PrivateSubnet2Block:
    Type: String
    Default: 192.168.12.0/24
  PrivateSubnet3Block:
    Type: String
    Default: 192.168.13.0/24

Resources:
# VPC
  EksVPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VpcBlock
      EnableDnsSupport: true
      EnableDnsHostnames: true
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-VPC

# PublicSubnets
  PublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Ref AvailabilityZone1
      CidrBlock: !Ref PublicSubnet1Block
      VpcId: !Ref EksVPC
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-PublicSubnet1
        - Key: kubernetes.io/role/elb
          Value: 1
  PublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Ref AvailabilityZone2
      CidrBlock: !Ref PublicSubnet2Block
      VpcId: !Ref EksVPC
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-PublicSubnet2
        - Key: kubernetes.io/role/elb
          Value: 1
  PublicSubnet3:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Ref AvailabilityZone3
      CidrBlock: !Ref PublicSubnet3Block
      VpcId: !Ref EksVPC
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-PublicSubnet3
        - Key: kubernetes.io/role/elb
          Value: 1

  InternetGateway:
    Type: AWS::EC2::InternetGateway
  VPCGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      InternetGatewayId: !Ref InternetGateway
      VpcId: !Ref EksVPC

  PublicSubnetRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref EksVPC
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-PublicSubnetRouteTable
  PublicSubnetRoute:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PublicSubnetRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1
      RouteTableId: !Ref PublicSubnetRouteTable
  PublicSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet2
      RouteTableId: !Ref PublicSubnetRouteTable
  PublicSubnet3RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet3
      RouteTableId: !Ref PublicSubnetRouteTable

# PrivateSubnets
  PrivateSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Ref AvailabilityZone1
      CidrBlock: !Ref PrivateSubnet1Block
      VpcId: !Ref EksVPC
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-PrivateSubnet1
        - Key: kubernetes.io/role/internal-elb
          Value: 1
  PrivateSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Ref AvailabilityZone2
      CidrBlock: !Ref PrivateSubnet2Block
      VpcId: !Ref EksVPC
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-PrivateSubnet2
        - Key: kubernetes.io/role/internal-elb
          Value: 1
  PrivateSubnet3:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Ref AvailabilityZone3
      CidrBlock: !Ref PrivateSubnet3Block
      VpcId: !Ref EksVPC
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-PrivateSubnet3
        - Key: kubernetes.io/role/internal-elb
          Value: 1

  PrivateSubnetRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref EksVPC
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-PrivateSubnetRouteTable

  PrivateSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet1
      RouteTableId: !Ref PrivateSubnetRouteTable
  PrivateSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet2
      RouteTableId: !Ref PrivateSubnetRouteTable
  PrivateSubnet3RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet3
      RouteTableId: !Ref PrivateSubnetRouteTable

# EKSCTL-Host
  EKSEC2SG:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: eksctl-host Security Group
      VpcId: !Ref EksVPC
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-HOST-SG
      SecurityGroupIngress:
      - IpProtocol: '-1'
        #FromPort: '22'
        #ToPort: '22'
        CidrIp: !Ref SgIngressSshCidr

  EKSEC2:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: !Ref MyInstanceType
      ImageId: !Ref LatestAmiId
      KeyName: !Ref KeyName
      Tags:
        - Key: Name
          Value: !Sub ${ClusterBaseName}-bastion-EC2
      NetworkInterfaces:
        - DeviceIndex: 0
          SubnetId: !Ref PublicSubnet1
          GroupSet:
          - !Ref EKSEC2SG
          AssociatePublicIpAddress: true
          PrivateIpAddress: 192.168.1.100
      BlockDeviceMappings:
        - DeviceName: /dev/xvda
          Ebs:
            VolumeType: gp3
            VolumeSize: 30
            DeleteOnTermination: true
      UserData:
        Fn::Base64:
          !Sub |
            #!/bin/bash
            hostnamectl --static set-hostname "${ClusterBaseName}-bastion-EC2"

            # Config Root account
            echo 'root:qwe123' | chpasswd
            sed -i "s/^#PermitRootLogin yes/PermitRootLogin yes/g" /etc/ssh/sshd_config
            sed -i "s/^PasswordAuthentication no/PasswordAuthentication yes/g" /etc/ssh/sshd_config
            rm -rf /root/.ssh/authorized_keys
            systemctl restart sshd

            # Config convenience
            echo 'alias vi=vim' >> /etc/profile
            echo "sudo su -" >> /home/ec2-user/.bashrc
            sed -i "s/UTC/Asia\/Seoul/g" /etc/sysconfig/clock
            ln -sf /usr/share/zoneinfo/Asia/Seoul /etc/localtime

            # Install Packages
            yum -y install tree jq git htop

            # Install kubectl & helm
            cd /root
            curl -O https://s3.us-west-2.amazonaws.com/amazon-eks/1.28.5/2024-01-04/bin/linux/amd64/kubectl
            install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl
            curl -s https://raw.githubusercontent.com/helm/helm/master/scripts/get-helm-3 | bash

            # Install eksctl
            curl -sL "https://github.com/eksctl-io/eksctl/releases/latest/download/eksctl_Linux_amd64.tar.gz" | tar xz -C /tmp
            mv /tmp/eksctl /usr/local/bin

            # Install aws cli v2
            curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
            unzip awscliv2.zip >/dev/null 2>&1
            ./aws/install
            complete -C '/usr/local/bin/aws_completer' aws
            echo 'export AWS_PAGER=""' >>/etc/profile
            export AWS_DEFAULT_REGION=${AWS::Region}
            echo "export AWS_DEFAULT_REGION=$AWS_DEFAULT_REGION" >> /etc/profile

            # Install YAML Highlighter
            wget https://github.com/andreazorzetto/yh/releases/download/v0.4.0/yh-linux-amd64.zip
            unzip yh-linux-amd64.zip
            mv yh /usr/local/bin/

            # Install krew
            curl -L https://github.com/kubernetes-sigs/krew/releases/download/v0.4.4/krew-linux_amd64.tar.gz -o /root/krew-linux_amd64.tar.gz
            tar zxvf krew-linux_amd64.tar.gz
            ./krew-linux_amd64 install krew
            export PATH="$PATH:/root/.krew/bin"
            echo 'export PATH="$PATH:/root/.krew/bin"' >> /etc/profile

            # Install kube-ps1
            echo 'source <(kubectl completion bash)' >> /root/.bashrc
            echo 'alias k=kubectl' >> /root/.bashrc
            echo 'complete -F __start_kubectl k' >> /root/.bashrc

            git clone https://github.com/jonmosco/kube-ps1.git /root/kube-ps1
            cat <<"EOT" >> /root/.bashrc
            source /root/kube-ps1/kube-ps1.sh
            KUBE_PS1_SYMBOL_ENABLE=false
            function get_cluster_short() {
              echo "$1" | cut -d . -f1
            }
            KUBE_PS1_CLUSTER_FUNCTION=get_cluster_short
            KUBE_PS1_SUFFIX=') '
            PS1='$(kube_ps1)'$PS1
            EOT

            # Install krew plugin
            kubectl krew install ctx ns get-all neat # ktop df-pv mtail tree

            # Install Docker
            amazon-linux-extras install docker -y
            systemctl start docker && systemctl enable docker

            # Create SSH Keypair
            ssh-keygen -t rsa -N "" -f /root/.ssh/id_rsa

            # IAM User Credentials
            export AWS_ACCESS_KEY_ID=${MyIamUserAccessKeyID}
            export AWS_SECRET_ACCESS_KEY=${MyIamUserSecretAccessKey}
            export AWS_DEFAULT_REGION=${AWS::Region}
            export ACCOUNT_ID=$(aws sts get-caller-identity --query 'Account' --output text)
            echo "export AWS_ACCESS_KEY_ID=$AWS_ACCESS_KEY_ID" >> /etc/profile
            echo "export AWS_SECRET_ACCESS_KEY=$AWS_SECRET_ACCESS_KEY" >> /etc/profile
            echo "export AWS_DEFAULT_REGION=$AWS_DEFAULT_REGION" >> /etc/profile
            echo "export ACCOUNT_ID=$(aws sts get-caller-identity --query 'Account' --output text)" >> /etc/profile

            # CLUSTER_NAME
            export CLUSTER_NAME=${ClusterBaseName}
            echo "export CLUSTER_NAME=$CLUSTER_NAME" >> /etc/profile

            # K8S Version
            export KUBERNETES_VERSION=${KubernetesVersion}
            echo "export KUBERNETES_VERSION=$KUBERNETES_VERSION" >> /etc/profile

            # VPC & Subnet
            export VPCID=$(aws ec2 describe-vpcs --filters "Name=tag:Name,Values=$CLUSTER_NAME-VPC" | jq -r .Vpcs[].VpcId)
            echo "export VPCID=$VPCID" >> /etc/profile
            export PubSubnet1=$(aws ec2 describe-subnets --filters Name=tag:Name,Values="$CLUSTER_NAME-PublicSubnet1" --query "Subnets[0].[SubnetId]" --output text)
            export PubSubnet2=$(aws ec2 describe-subnets --filters Name=tag:Name,Values="$CLUSTER_NAME-PublicSubnet2" --query "Subnets[0].[SubnetId]" --output text)
            export PubSubnet3=$(aws ec2 describe-subnets --filters Name=tag:Name,Values="$CLUSTER_NAME-PublicSubnet3" --query "Subnets[0].[SubnetId]" --output text)
            echo "export PubSubnet1=$PubSubnet1" >> /etc/profile
            echo "export PubSubnet2=$PubSubnet2" >> /etc/profile
            echo "export PubSubnet3=$PubSubnet3" >> /etc/profile
            export PrivateSubnet1=$(aws ec2 describe-subnets --filters Name=tag:Name,Values="$CLUSTER_NAME-PrivateSubnet1" --query "Subnets[0].[SubnetId]" --output text)
            export PrivateSubnet2=$(aws ec2 describe-subnets --filters Name=tag:Name,Values="$CLUSTER_NAME-PrivateSubnet2" --query "Subnets[0].[SubnetId]" --output text)
            export PrivateSubnet3=$(aws ec2 describe-subnets --filters Name=tag:Name,Values="$CLUSTER_NAME-PrivateSubnet3" --query "Subnets[0].[SubnetId]" --output text)
            echo "export PrivateSubnet1=$PrivateSubnet1" >> /etc/profile
            echo "export PrivateSubnet2=$PrivateSubnet2" >> /etc/profile
            echo "export PrivateSubnet3=$PrivateSubnet3" >> /etc/profile

            # Create EKS Cluster & Nodegroup
            eksctl create cluster --name $CLUSTER_NAME --region=$AWS_DEFAULT_REGION --nodegroup-name=ng1 --node-type=${WorkerNodeInstanceType} --nodes ${WorkerNodeCount} --node-volume-size=${WorkerNodeVolumesize} --vpc-public-subnets "$PubSubnet1","$PubSubnet2","$PubSubnet3" --version ${KubernetesVersion} --ssh-access --ssh-public-key /root/.ssh/id_rsa.pub --with-oidc --external-dns-access --full-ecr-access --dry-run > myeks.yaml
            sed -i 's/certManager: false/certManager: true/g' myeks.yaml
            sed -i 's/ebs: false/ebs: true/g' myeks.yaml
            cat <<EOT >> myeks.yaml
            addons:
              - name: vpc-cni # no version is specified so it deploys the default version
                version: latest # auto discovers the latest available
                attachPolicyARNs:
                  - arn:aws:iam::aws:policy/AmazonEKS_CNI_Policy
                configurationValues: |-
                  enableNetworkPolicy: "true"
              - name: kube-proxy
                version: latest
              - name: coredns
                version: latest
            EOT
            cat <<EOT > precmd.yaml
              preBootstrapCommands:
                - "yum install nvme-cli links tree tcpdump sysstat -y"
            EOT
            sed -i -n -e '/instanceType/r precmd.yaml' -e '1,$p' myeks.yaml
            nohup eksctl create cluster -f myeks.yaml --verbose 4 --kubeconfig "/root/.kube/config" 1> /root/create-eks.log 2>&1 &
            echo 'cloudinit End!'

Outputs:
  eksctlhost:
    Value: !GetAtt EKSEC2.PublicIp







2.2 스택 세부정보 지정

위의 CloudFormation 스택을 생성하면 아래의 파라미터 정보를 입력 받는다.



앞서 사전 작업으로 생성해둔 KeyPair, AccessKey 및 Secret Key 정보를 기입한다.

SgIngressSshCidr는 접속하고자 하는 사용자의 Public IP(ex_ A.B.C.D/32)를 기입하면 된다.



사용자 PC의 공인 IP 확인 방법
사용자 PC의 cmd 창에서 curl ipconfig.me 명령어를 통해 사용자 PC의 공인 IP를 확인한다.





2.2.1 EKS Config 변경사항

EKS Version
- 평균 4개월에 한 번씩 새로운 Kubernetes 마이너 버전(예: 1.30 )을 릴리스
- v1.28는 2024년 12월 EOL 되었고, v1.29는 2025년 3월 만료 예정



KuberenetesVersion의 기본값은 1.28이다. 버전이 만료되었으므로 v1.31으로 변경해서 실습 진행할 예정이다.





2.2.2 CloudFormation이 배포할 때 사용할 IAM Role 생성

• AdministratorAccess

테스트 용도니... Admin 권한을 줘버렸다..





2.3 스택 옵션 구성

앞서 생성한 IAM Role은 CloudFormation 스택 옵션 구성에서 권한 부분에 지정하면 된다.



2.4 배포 확인

총 스택은 4개의 스택이 배포된다.

이어서 각 스택별 용도를 설명하겠다.



2.4.1 myeks 스택 배포 확인

CloudFormation에서 배포되는 스택은 myeks 스택이다.

VPC, Subnet, Route Table, EC2(Bastion-ec2) 생성 정의가 되어있다.



Output 값으로 bastion-ec2 Public IP를 확인할 수 있다.



2.4.2 eksctl-myeks-cluster 스택 배포 확인

앞서 CloudFormation에 정의된 EC2 Userdata를 통해 배포된 eksctl-myeks-cluster 스택이다.

서버 내에서 eksctl 명령어를 실행하면 내부적으로는 CloudFormation 스택이 생성되어 배포된다.

eksctl을 통해 생성된 스택은 이름에 'eksctl-{cluster이름}- ~~'이 붙는다.

EKS Cluster, SG, IAM Role 생성 정의가 되어있다.





2.4.3 eksctl-myeks-addon-vpc-cni 스택 배포 확인

앞서 CloudFormation에 정의된 EC2 Userdata를 통해 배포된 eksctl-myeks-addon-vpc-cni 스택이다.

addon-vpc-cni 관련 IAM Role 생성 정의가 되어있다.





2.4.4 eksctl-myeks-nodegroup-ng1 스택 배포 확인

앞서 CloudFormation에 정의된 EC2 Userdata를 통해 배포된 eksctl-myeks-nodegroup-ng1 스택이다.

Nodegroup, LaunchTemplate, IAM Role, Policy, SG 생성 정의가 되어있다.





3. 배포 정상 확인

앞서 배포한 CloudFormation에서 초기화한 로그인 정보를 통해 접속한다.

ssh root@<bastion의 public-ip>
# id: root, pw: qwe123



MobaXterm을 통해 bastion-ec2에 접속했다. 개인별 편리한 ssh 접속 Tool을 사용하여 접속하면 되겠다.

UserData에 정의된 Kubectl, AWS CLI, Docker 설치 되었는지 확인하였다.
